Features

TrafoStar provides tools for input file handling, point matching, transformation calculation, statistics and graphical deviation analysis.

IN

Input files

MCS file as measurement coordinate system / start system
OCS file as object coordinate system / target system
Point matching by point ID / point number
Optional import of additional points to transform

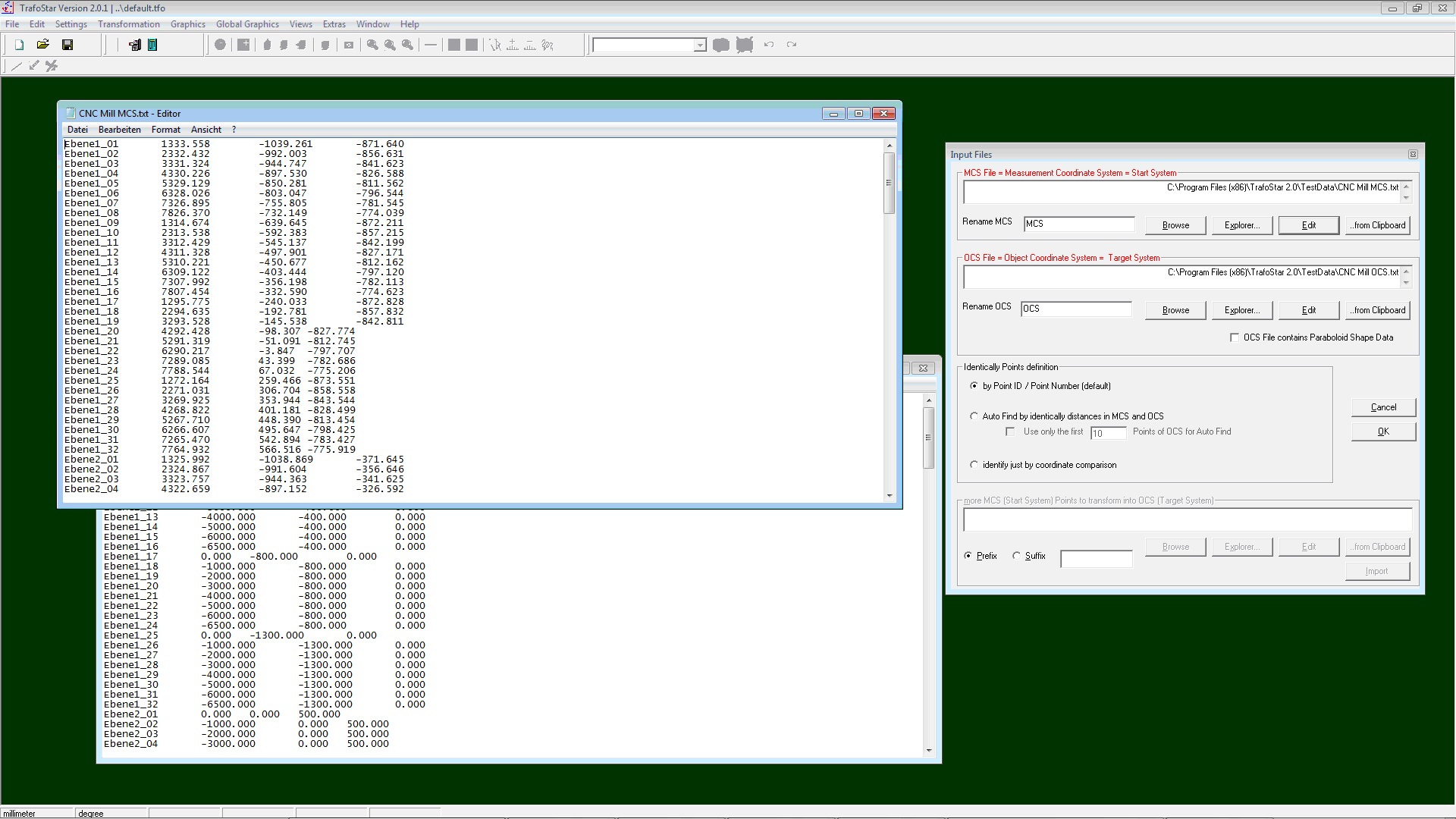

Input files and coordinate systems

Σ

Transformation calculation

Different transformation standards and parameter sets
L1 / L2 solution options
Seed values and recalculation workflow
Statistics for sigma and maximum deviations

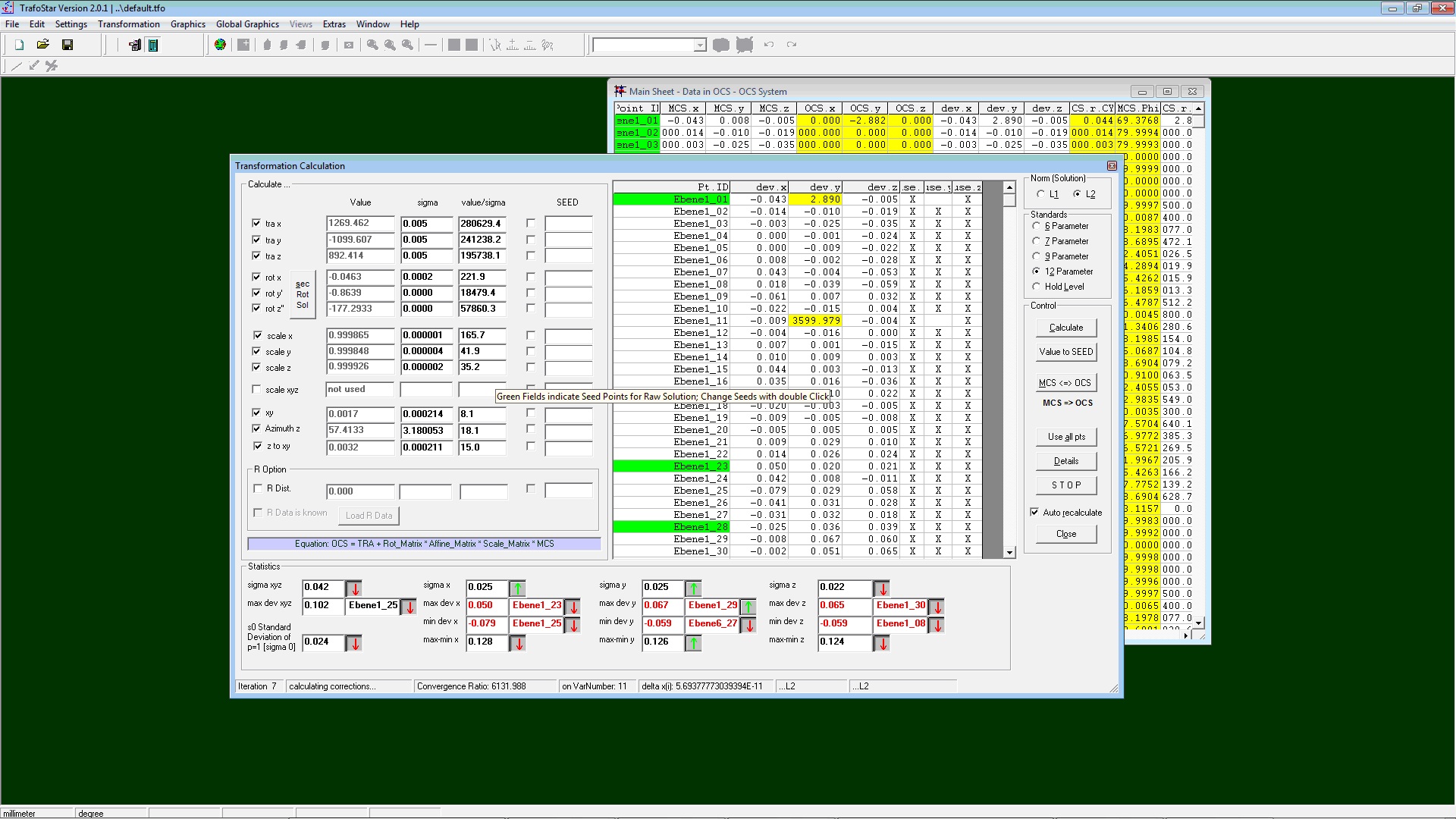

Transformation calculation

XYZ

Results and tables

Main sheet with MCS, OCS and deviation columns
Color-coded deviation values
Point usage control for robust transformation
Detailed transformation matrix output

Results and graphical labels

GFX

Graphics

3D visualization of points and deviation vectors
Color bar settings and tolerance classes
Cartesian, cylindrical and spherical coordinate settings
Labels and deviation tables inside the graphic view

Color bar and tolerance settings

3D

Large 3D point sets

Graphical analysis of dense measurement point distributions
Deviation vectors with adjustable scale
Visual tolerance classes using blue-to-red color mapping
Useful for industrial measurement and surface evaluation

Large 3D point set graphics
